Minelab Equinox 900 Here are the basic tech specs for you.

Minelab Equinox 900 Here are the basic tech specs for you.

G'day Detectorists,

Your struggle to work out which machine your going to go with just got a little tougher this morning with the launch of the equinox 700 and equinox 900 metal detectors from Minelab.

 Here are the tech specs of the equinox 900 from minelab.

Some pretty cool features in there and the biggest news for us is the use of 119 TID Numbers. With Multi IQ accuracy and depth, I suspect we are gonna see some deep targets coming out soon.

equinox 900 screen

TECH Specs of the Equinox 900: This is what counts when the coil meets the soil.

Search Modes: Park, Field, Beach, Gold
All-Metal Shortcut: Yes
Custom Search Profiles: 8
User Profile Button: Yes
Operating Frequencies (kHz): Multi, 4, 5, 10, 15, 20, 40
Noise Cancel: Auto (19 Channels), Manual
Ground Balance: Auto, Manual, Tracking
Sensitivity: b1 to 28
Target Volume: 0 to 25
Threshold Level: 0 to 25
Threshold Pitch: 0 to 25
Target Identification (TID): 119 segment notch discrimination: Ferrous: -19 to 0 I Non-ferrous: 1 to 99
Target Tones: 1,2, 5, All Tones (At), Depth (dP)
Tone Break: Ferrous, Non-ferrous (t1, t2, t3, t4)
Tone Pitch: All tones adjustable: 0 to 25
Tone Volume: All tones adjustable: 0 to 25
Recovery Speed: 1 to 8
Iron Bias: 0 to 9
Depth Indicator: 5 levels
Discrimination Segments: 119 segments
Pinpoint Mode: Yes
Wireless Audio: Yes
Length (approx.): Collapsed: 61 cm (24 in) - Extended: 144 cm (56.7 in)
Weight: 1.27 kg (2.8 lbs)
Display: Monochrome LCD
Display and Keypad Backlight (red): Off, High, Medium, Low
Flashlight: On, Off
Vibration: On, Off per Tone Region
Supplied Coil: EQX11 11" Double-D coil with skid plate, EQX06 6" Coil with skid plate
Audio Output: In-built loudspeaker, Wired 3.5 mm (1/8") headphones, Wireless headphones
Supplied Headphones: Minelab ML 85 Low Latency wireless headphones
Battery: 3.7V/5100 mAh Internal Lithium-lon battery
Additional Included Accessories: Getting Started Guide, Screen Protector (English), Charging Cable
Waterproof: 5m (16 ft) IP68
Operating Temperature Range: -10 to +40 degrees celcius (+14 to +104 degrees fahrenheit)
Storage Temperature Range: -20 to +70 degrees celcius (-40 to +158 degrees fahrenheit)
Key Technologies: Multi-IQ
Lastly your Current Equinox coils will work on the new machine, so the 6 Inch and 15 Inch will go straight On.
minelab equinox 900 coil
If we can help with any further Information about the new Minelab Equinox 900 please get in touch with us at the store:
0467 614 701
Or use the contact us form.
OR Jumpin the car and come into the shop in Newcastle.

Take care and happy detecting

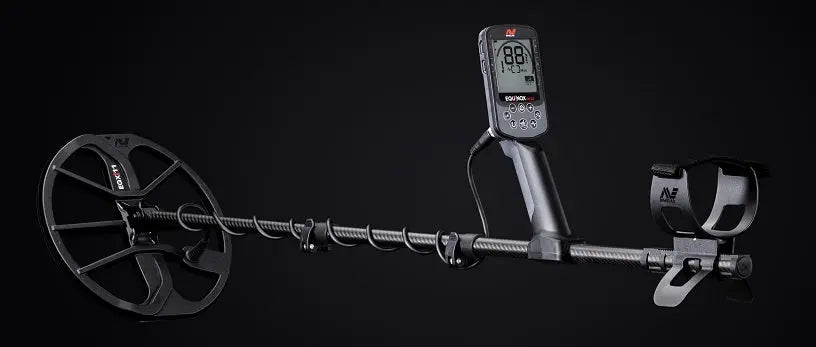

Minelab equinox 900 extended
