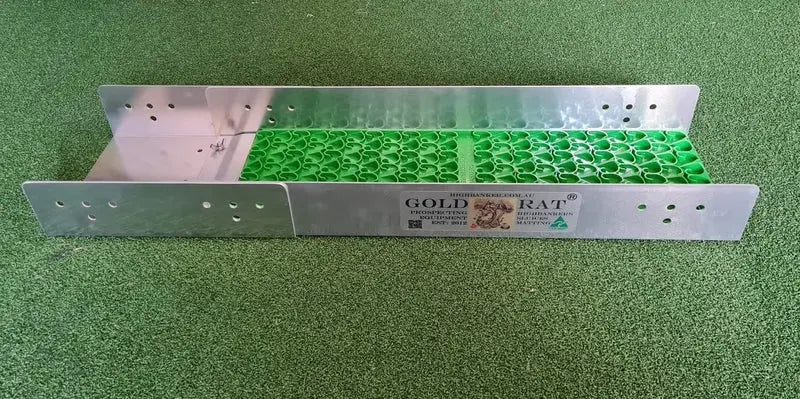

GoldRat 888 Sluice Extension.

Made from CNC Milled 5052 Aluminium two part Extension with sleeved joiner and stainless steel fixtures, this option allows the prospector and miner alike to increase throughput, processing capacity and when overfeeding reduce losses.





The design incorporates a multi-mount connection system which integrates with every leg option we have offered over the years, as with all of our products the unit is forward and backward compatible.

When adding to an 8 inch recirculating system / clean-up system simply remove the lower legs and use the sleeve to extend while migrating the legs to a lower position, there are three positions in total available to you.

If using for our 888 river sluice you can simply drill 8mm holes to match the profile of the rear mounts. If you have one of our new 888s the holes are already there.

This gold sluice extension will also fit onto our modular sluices and outback pioneer series high bankers.

One awesome feature of this extension is there is no limit to how many extensions you can run, each sluice is cnc milled to accommodate another extension.

What's included:

1 x Sluice

1 x Sluice Connector Sleeve

1 x optional green mini mat or naked extension option

1 x 8 inch low profile dream mat clamp

2 x m6x16 button head bolt

4 x m8 stainless wingnut

8 x m8x16 button head bolt

4 x m8 Stainless Flange nut
